KA-BAR USMC PRODUCTION ISSUE 1992-2014
|

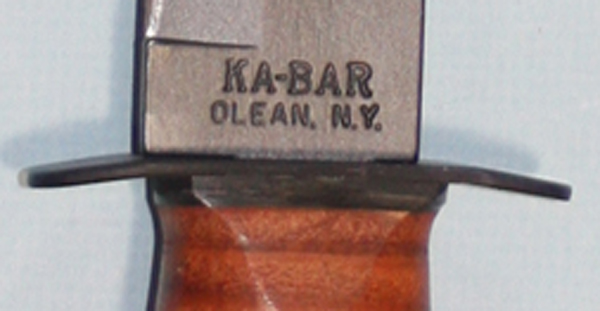

PRODUCTION ISSUE 1992-2014 Production continued through with the standard 3/8 inch thick open recess tang pommell that was held on by a pin that went 3/4 way through the pommell that became standard for all productions.. The handle was the standard leather type with a thicker fiber spacer at top and bottom, The blade, pommell & crossguard now powder coated glossy black . with the early standard Ka Bar.Olean.NY. logo on one side of the ricasso and USMC on the other.The top clip notsharpened. and the blade grind went as lower 3/16" below the fuller. The early box which became the standard blueprint design now had the #1217 number on the end and the bar code on the side.New revised printed leaflets were enclosed for description and maintenance AD-39 R-10-92 a care guide. AD593 R-10-92 description and a new USMC fighting knife brochure AD615 copyright 1989 R10-92 "THE ORIGINAL U.S.M.C FIGHTING KNIFE AVAILABLE ONLY FROM KA-BAR KNIVES". The Leather sheath with USMC stampings was sown & now riveted together , and the design of the USMC unchanged with the vertical narrower letter.These sheaths can be found made in either Mexico or Haiti. |
 |
|
|
|
FIXING PIN GOES HALF WAY THROUGH THE 3/8" THICK POMMELL.THICK SPACERS |
THE OPEN RECESS TANG FLUSH WITH TOP. |
 |
THE EARLY USMC STAMPING WITH NARROWER LETTERS. AND DOTS WHICH WOULD BE ELIMINATED IN 2014) A THICK FIBER SPACER ON THOSE ISSUED AFTER 1986. |
 |

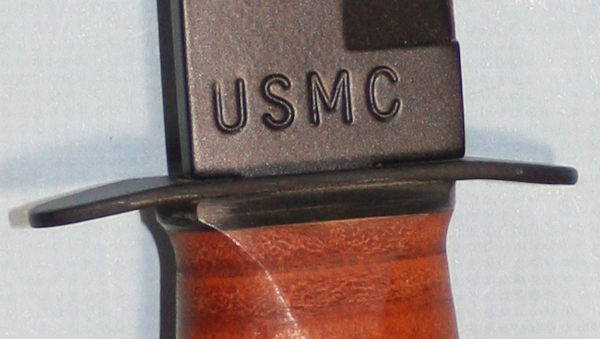

THE STANDARD NARROW OVAL "C" USMC WHICH WOULD BECOME MUCH LARGER FROM IN 2014 A THICK FIBER SPACER ON THOSE ISSUED AFTER 1986 |
|

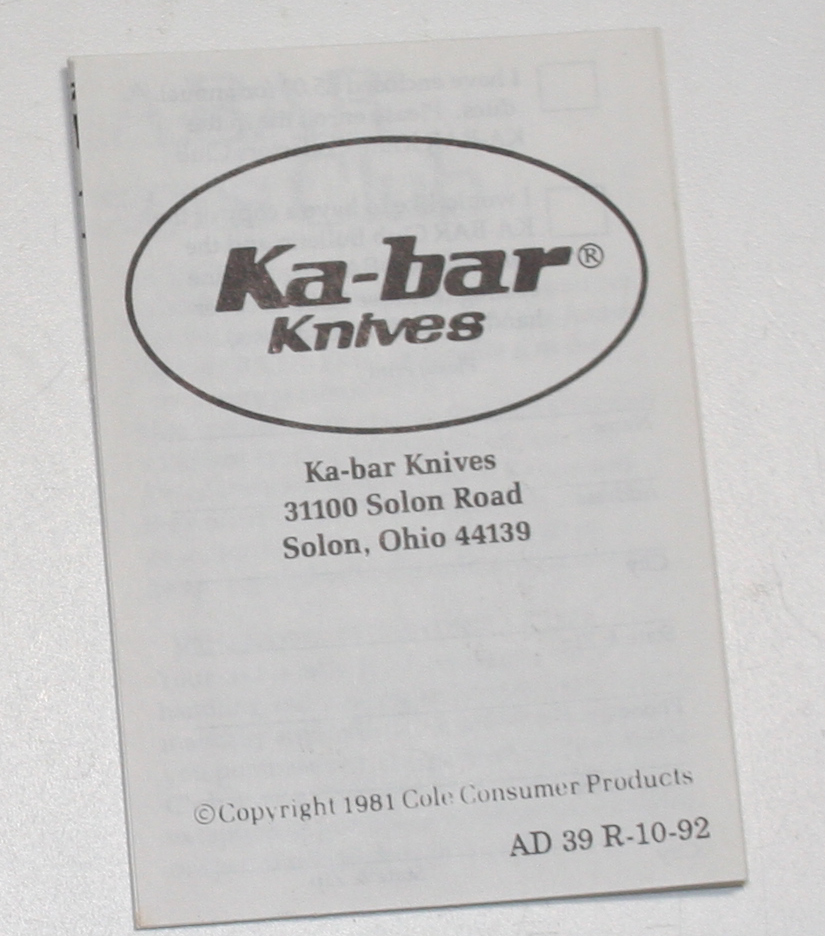

New revised printed leaflets were
enclosed for description and maintenance AD-39 R-10-92 a care guide.

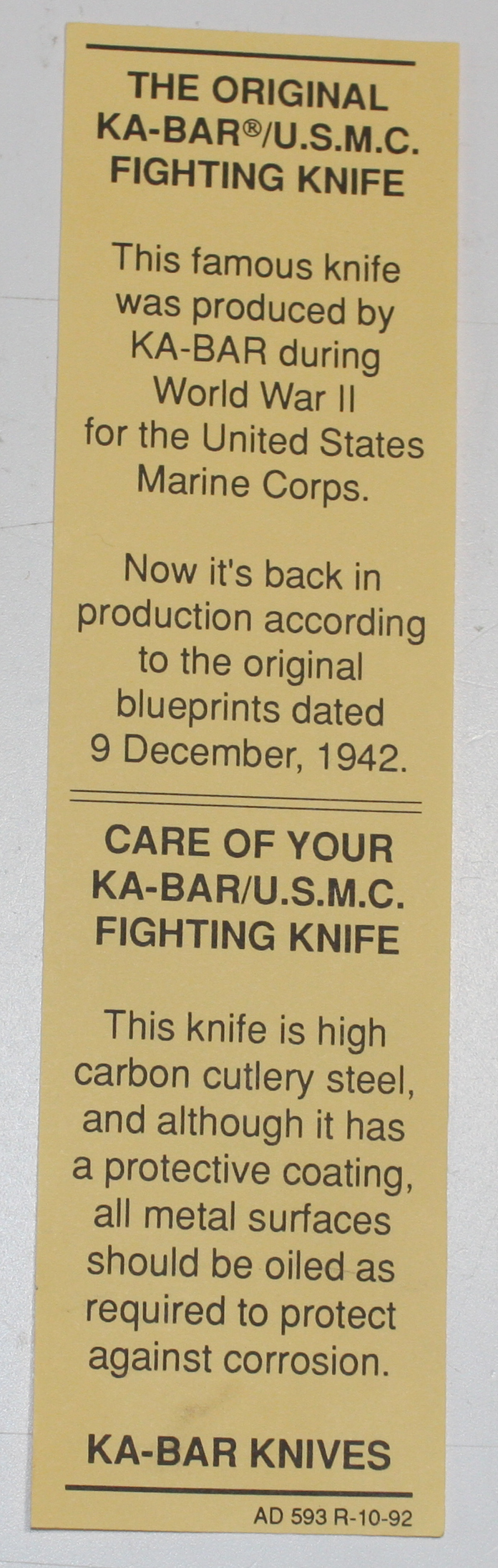

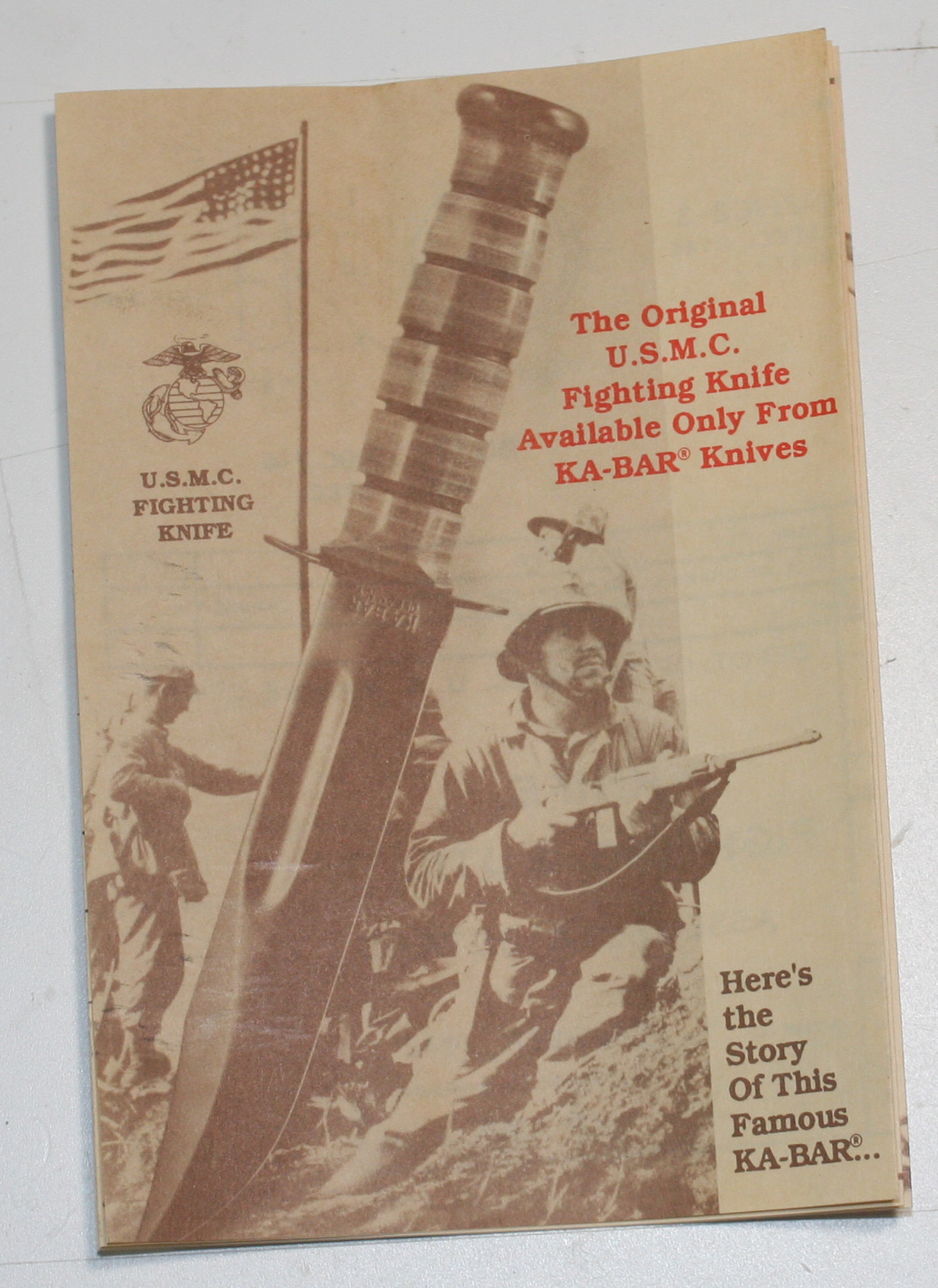

AD593 R-10-92 description and a new USMC fighting knife brochure AD615
copyright 1989 R10-92 "THE ORIGINAL U.S.M.C FIGHTING KNIFE AVAILABLE
ONLY FROM KA-BAR KNIVES"
|
 |
  |
 |
WHAT BECAME THE STANDARD USMC SHEATHFROM 1992 WITH STITCHING & STAPLES REPLACED BY RIVETS THESE SHEATHS CAN BE FOUND MADE IN EITHER MEXICO OF HAITI. |
